first stage reducer Grátis Modelo 3D

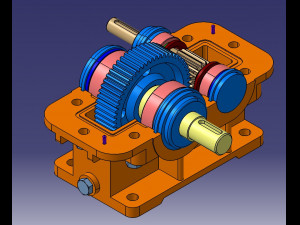

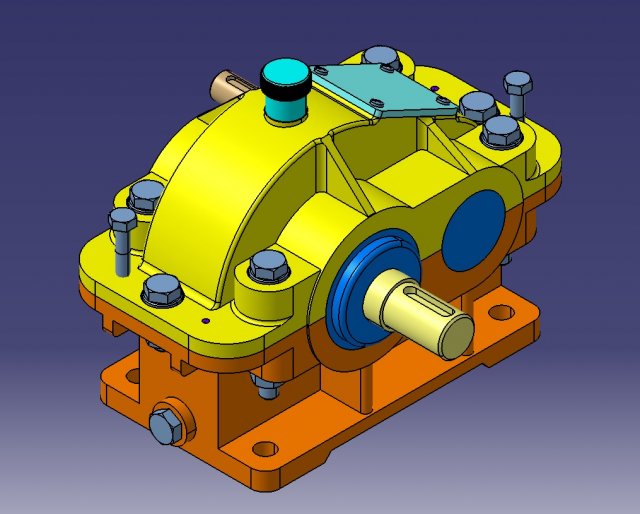

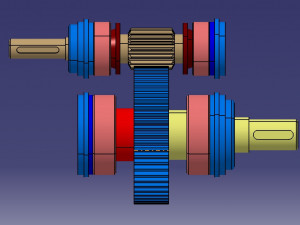

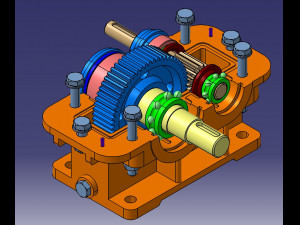

the 3d model of the first stage reducer (simulation) is also helpful for learning catia assembly and simulation. this drawing is drawn by catia v5r21. this drawing is a three digit drawing of the first level reducer, including all parts of the first level reducer. such as: machine cover, frame, driving gear shaft, driven shaft, gear, 62056202 bearing, bolt gasket and perspective cover and other small parts. the design of the drawing and the source of all dimensions and the reducer model, the parts included and the contents expressed in the assembly drawing are clear and clear. the dimensions affected by the actual use, wear and manufacturing, and mapping error have been eliminated in the drawing. this drawing is helpful to understand the working principle of the first level reducer, the assembly and motion relationship between various parts. the drawing has done well in motion simulation, especially for the assembly and disassembly of reducer when surveying and mapping for college students. Pronto para impressão: Não
