MSR500 Buried Scraper Conveyor Modelo 3D

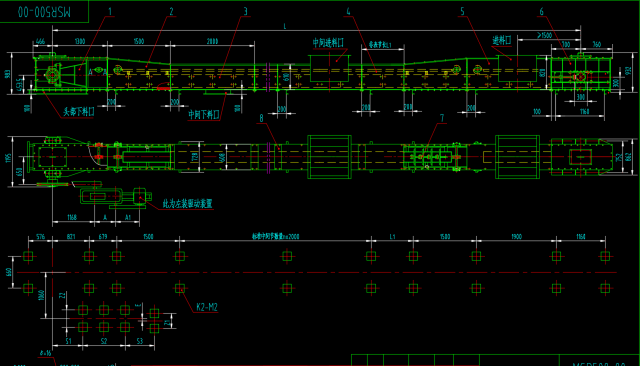

MSR500 Buried Scraper Conveyor
Buried scraper conveyor is a transportation equipment that transports bulk materials according to predetermined goals by means of a scraper chain moving in a closed shell. It has the advantages of small size, strong sealing, good rigidity, flexible process layout, convenient installation and maintenance, and multi-point feeding and multi-point unloading. Therefore, the working conditions of workers are significantly improved and environmental pollution is prevented. The principle of the buried scraper conveyor depends on the internal friction of the material and the side pressure of the shell to the material. During the material conveying process, the pressure in the moving direction of the scraper chain and the impact of the lower material on the upper material during continuous feeding. Pushing force, the synthesis of these forces is enough to overcome the external frictional resistance and the weight of the material itself when the material is transported in the machine tank and the shell. The material can form a continuous material flow to move forward no matter in horizontal conveying, inclined conveying and vertical conveying.
The buried scraper conveyor is a conveying machine with a flexible traction member. Its conveying principle is different from that of scraper conveyor. The scraper conveyor uses the buried scraper fixed on the chain to scrape the material forward one by one, and the material is intermittent. Pronto para impressão: Não
