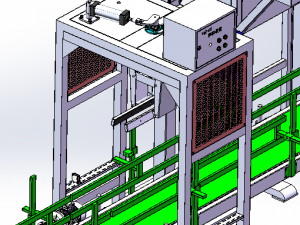

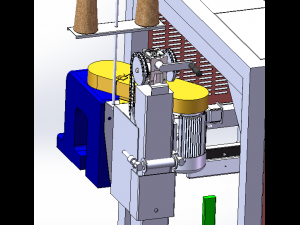

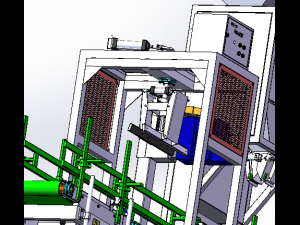

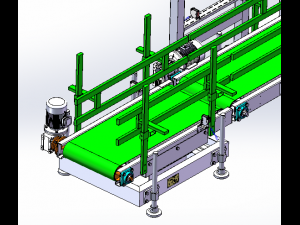

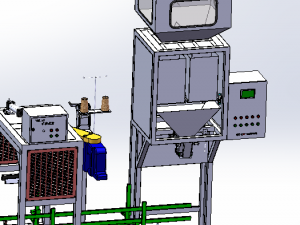

sorting and quantitative packaging machine Modelo 3D

$12.00
sorting and quantitative packaging machine Modelo 3D
$ 12.00
Retirar do favoritos Colocar Item nos favoritos
  • Animados:
    No
  • Textura:
    No
  • Equipados:
    No
  • Materiais:
  • Low-poly:
    No
  • Coleção:
    No
  • Mapeamento UVW:
    No
  • Plugins Utilizados:
    No
  • Pronto para impressão:
    No
  • Scan 3D:
    No
  • Conteúdo adulto:
    No
  • PBR:
    No
  • Geometria:
    Polygonal
  • UVs não embalados:
    Unknown
  • Visualizações:
    2572
  • Data:
  • ID do Item:
    309701
  • Avaliação:
scope of application: pharmaceutical, chemical, fertilizer, seed, pesticide, grain, food and other industries, automatic quantitative packaging of granular materials. this series of quantitative packaging unit is specially designed for the quantitative packaging of various granular materials. it adopts large, medium and small grading feeding mode, and through sensor control and pl control, it can feed materials into the weighing bucket and packaging bag. when the material in the weighing bucket or packing bag is filled to the set weight, stop feeding. the bag clamping device opens automatically, the material bag is sent away through the conveyor belt, and the bag is fully automatic sewing (sealing) and sorting. technical indicators: product model: xioc-l5b; measurement range: 0.5-25kg; packaging speed: 12-18 bags / min; packaging accuracy: 0.2-1% f.s; power: 3.7kw; air pressure: 0.4-0.6mpa. product features: independent packaging weight input, intelligent weighing weight display, display window using high brightness led display; menu operation is simple and intuitive; manual assistance in bag (or barrel), pneumatic bag clamping; independent weighing system weighing, high weighing accuracy and speed; asynchronous motor plc control, frequency converter speed regulation, high control accuracy; high accuracy, easy to operate and easy to operate; it has the functions of automatic peeling, real-time photographing, data encryption, time display, etc.; single / double channel feeding mode can be adopted, and fast, medium and slow feeding can be adopted to ensure the speed and accuracy;; the structure is stable, the floor area is small, and it is easy to clean and maintain; Pronto para impressão: Não
Precisa de mais formatos?
Se precisar de um formato diferente, por favor abra um novo Support Ticket e solicite isso. Podemos converter modelos 3D para: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Não convertemos cenas 3D e formatos como .step, .iges, .stp, .sldprt.!

Download sorting and quantitative packaging machine Modelo 3D sldprt step De tzd

packaging machine
